Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2015, CE
Model Number:
ID 3/4"
Video
Video
3/4 Inch Factory RED Yellow Durable Anti-aging Multi Ply EPDM Air Jackhammer Hose
Construction: Tube: EPDM & SBR synthetic rubber
Reinforcement: High tensile polyester fiber braided
Cover: EPDM synthetic rubber
Fitting Type:

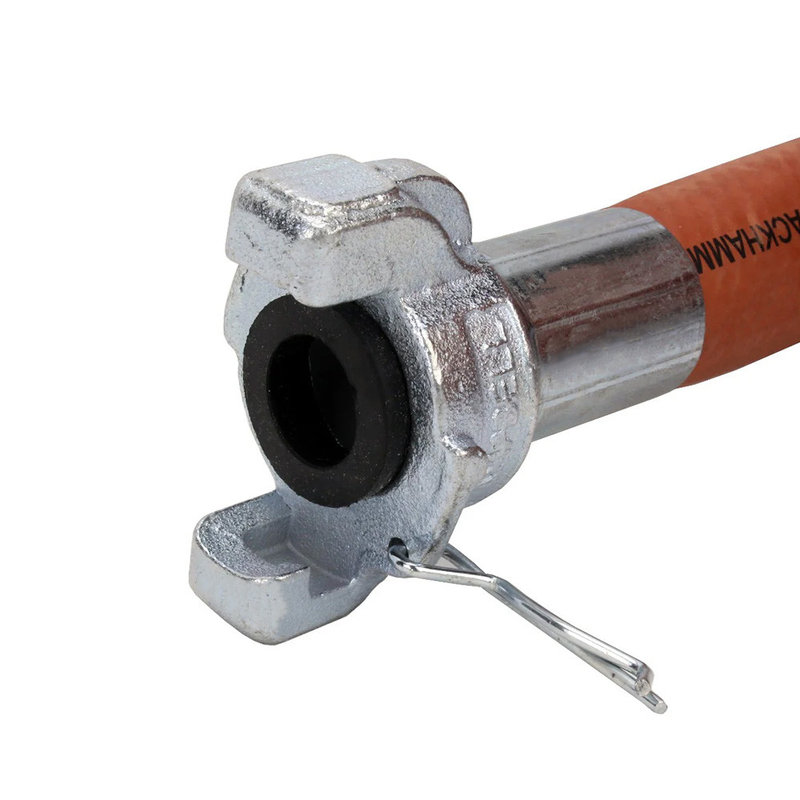

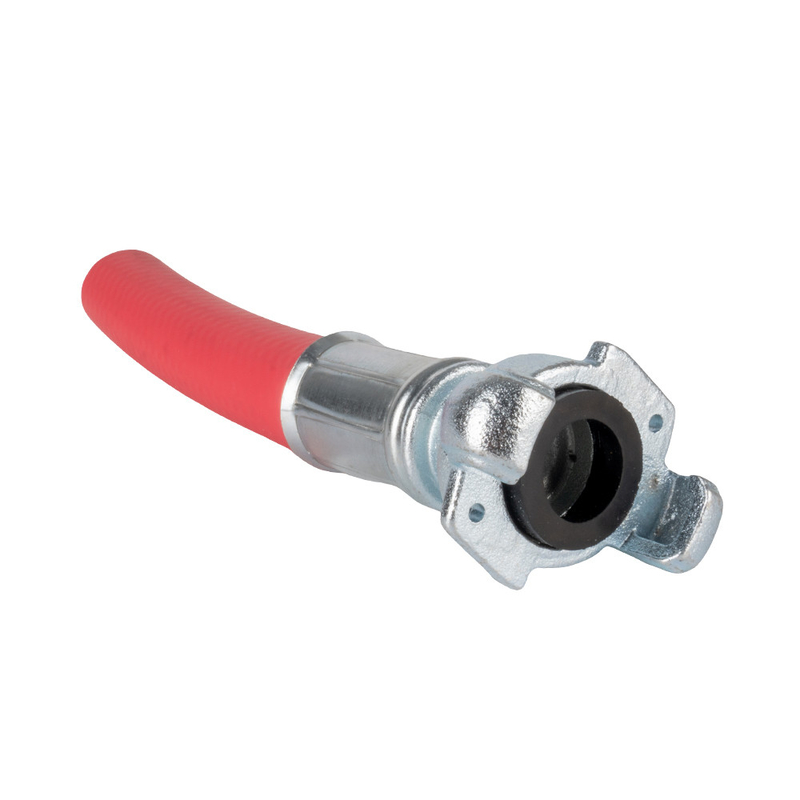

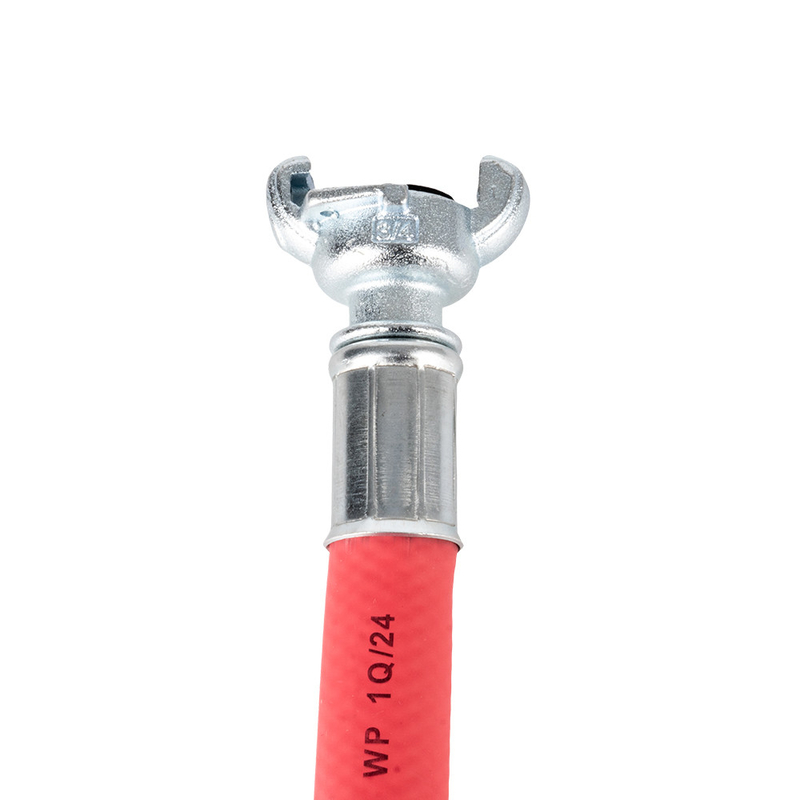

CRIMPED US Unversal Claw Couplings.
Temperature: -30℃ - +70℃
Color: Red, Yellow, etc.
Application: Mainly used for air compressor and pneumatic tool.
Standard length: 50 ft each roll.
Specification of hose:
Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Weight | |||
inch | mm | mm | bar | psi | bar | psi | ft/pc | kg/pc | |
HPR1 | 3/4" | 19 | 29 | 17 | 250 | 50 | 750 | 50 | 10 |
HPR2 | 1" | 25.4 | 36 | 14 | 200 | 40 | 600 | 50 | 14.5 |
HPR3 | 1" | 25.4 | 37 | 20 | 300 | 60 | 900 | 50 | 15.5 |

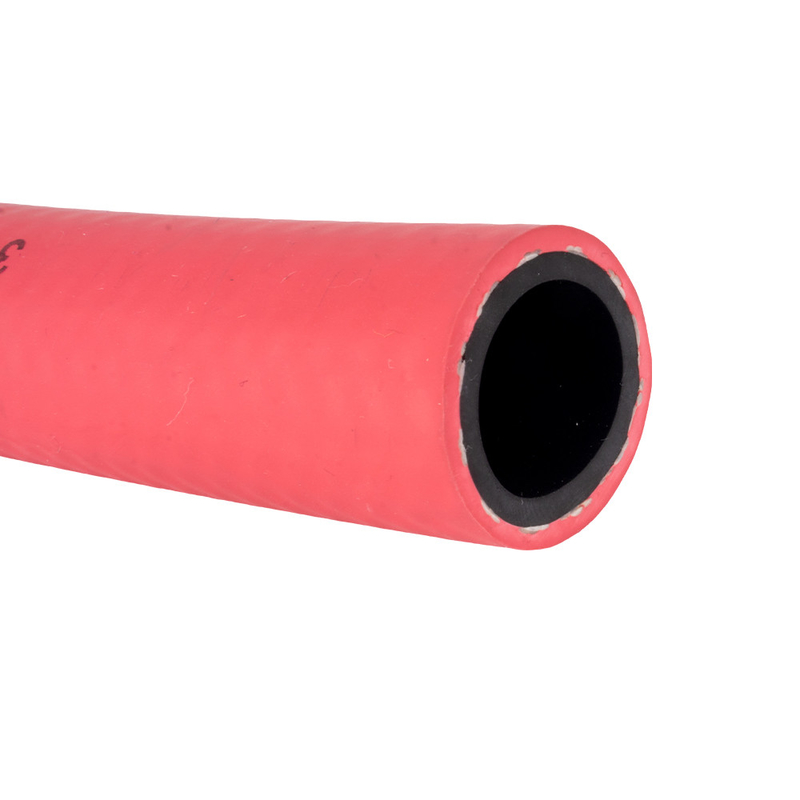

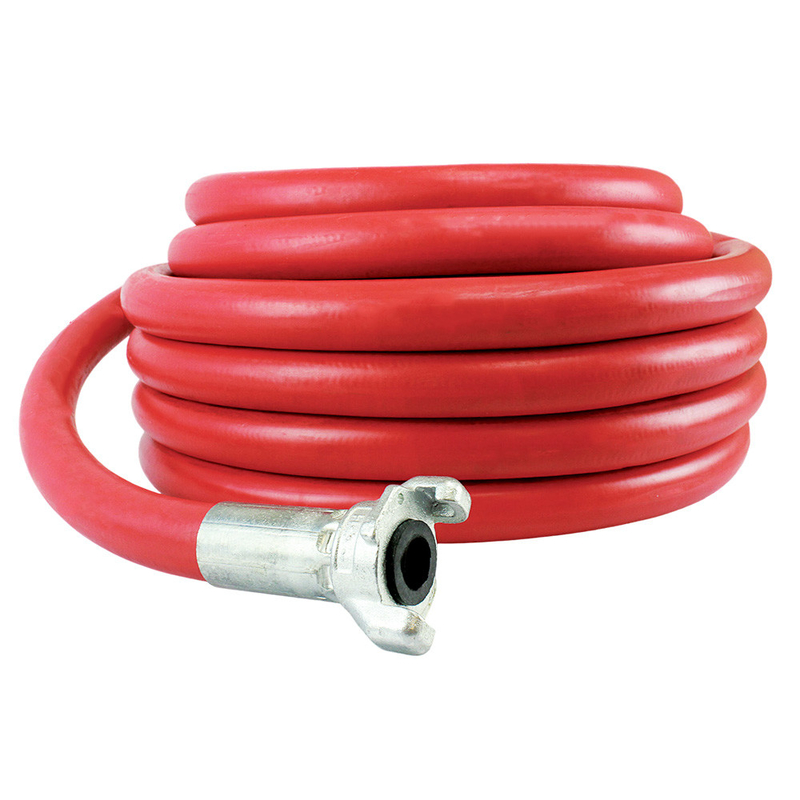

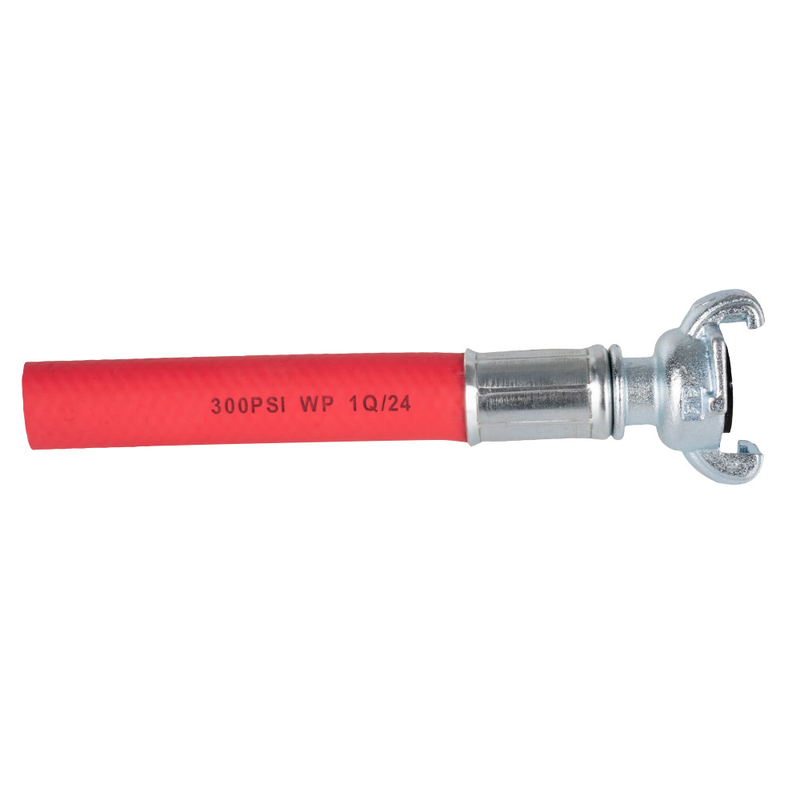

Picture of Paishun hoses:
Paishun hose package:
Paishun team and clients:
Competitive Advantage:
PASSION® Rubber JACKHAMMER hose, is popular in USA, Canada market, made of non-recycled rubber,
according to ISO-2398 standard.
